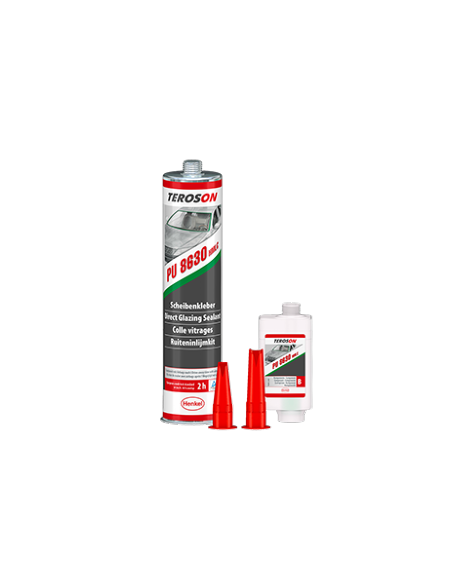

TEROSON PU 8630 HLMC SET IN KIT

TEROSON PU 8630 HLMC SET

Teroson PU 8630 HMLC SET is a bi-component polyurethane adhesive with high shear modulus and low conductivity.

•

• Very good sag resistance

• High elastic and shear strength, even after aging

• Very low conductivity

• Good adhesion to the remaining material

• Excellent adhesion to glass, glass with the ceramic coating, encapsulation and to painted surfaces, in connection with primer/activator

• High UV resistance in connection with primer/activator

• High shear modulus

• Easy to use ( application with battery gun / 1C pneumatic gun)


•

• Colour : black

• Odour : weak

• Consistency : smooth, sag-resistant, pasty

• Density : approx. 1.2 g/cm3

• Solids : 100%

• Shore-A-hardness (DIN 53505): approx. 60

• Tensile strength (DIN 53504): approx. 9.5 MPa

• Stress (DIN 53504): approx. 5.7 MPa at 100 % elongation

• Shear modulus (DIN 54451): approx. 3.0 MPa

• Elongation to break (DIN 53504): approx. 370 %

• Shear strength (thickness 5mm, 5–6 MPa (fully cured) based on DIN EN 1465) :

  approx. 4 to 5 MPa (fully cured)

• Specific forward resistance (ASTM D 257-99 / DIN IEC 60093) : approx. 1×1010 ω cm

• Volume change (DIN 52451) : < 1 %

• Glazing time* : max. 25 mins

• Material application temperature : +60°C to +70°C

• In service temperature range : -40°C to +90°C

  short exposure (up to 1 hr.) : +120°C
