3M 92 NBB2 U SCOTCHCAST RESIN KIT

3M RESIN KIT 92 NBB2 U - Y-BRANCH JOINT KIT

3M Scotchcast resin Y-Branch kits 92-NBB x U are designed to be used for 1-core up to 5-core non shielded, polymeric, low voltage energy cables.

The application incorporates electrical insulation and mechanical protection of joints with compression or mechanical connectors.
They can be used for indoor and outdoor, underground and submerged applications in heavy conditions were flame retardancy or resistance against chemicals like hydro carbons is required.



Features :
- Diameter : 16 - 33 MM
- Resin 1402FR in transparent two chamber bags with integrated Closed Mixing and Pouring (CMP) system.
- Two part (upper and lower) mould shelves with Snap Fit closing system for quick and easy handling.
- Transparent PC Mould Body for easy control of connector distances in the joint.
- Pre cut foam sealing elements to provide reliable sealing to the Mould Body without tooling for all cable application diameters.
- Closure cap to prevent any pollution.

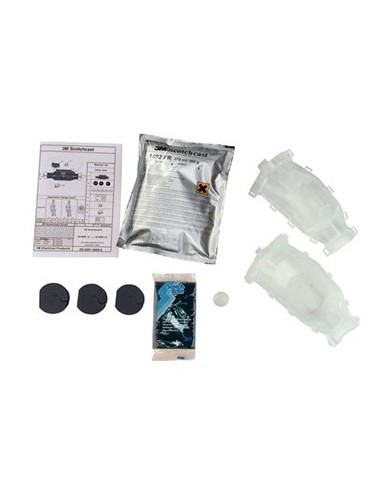

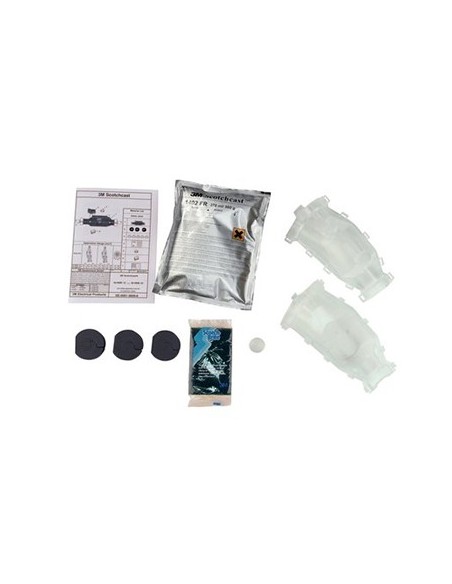

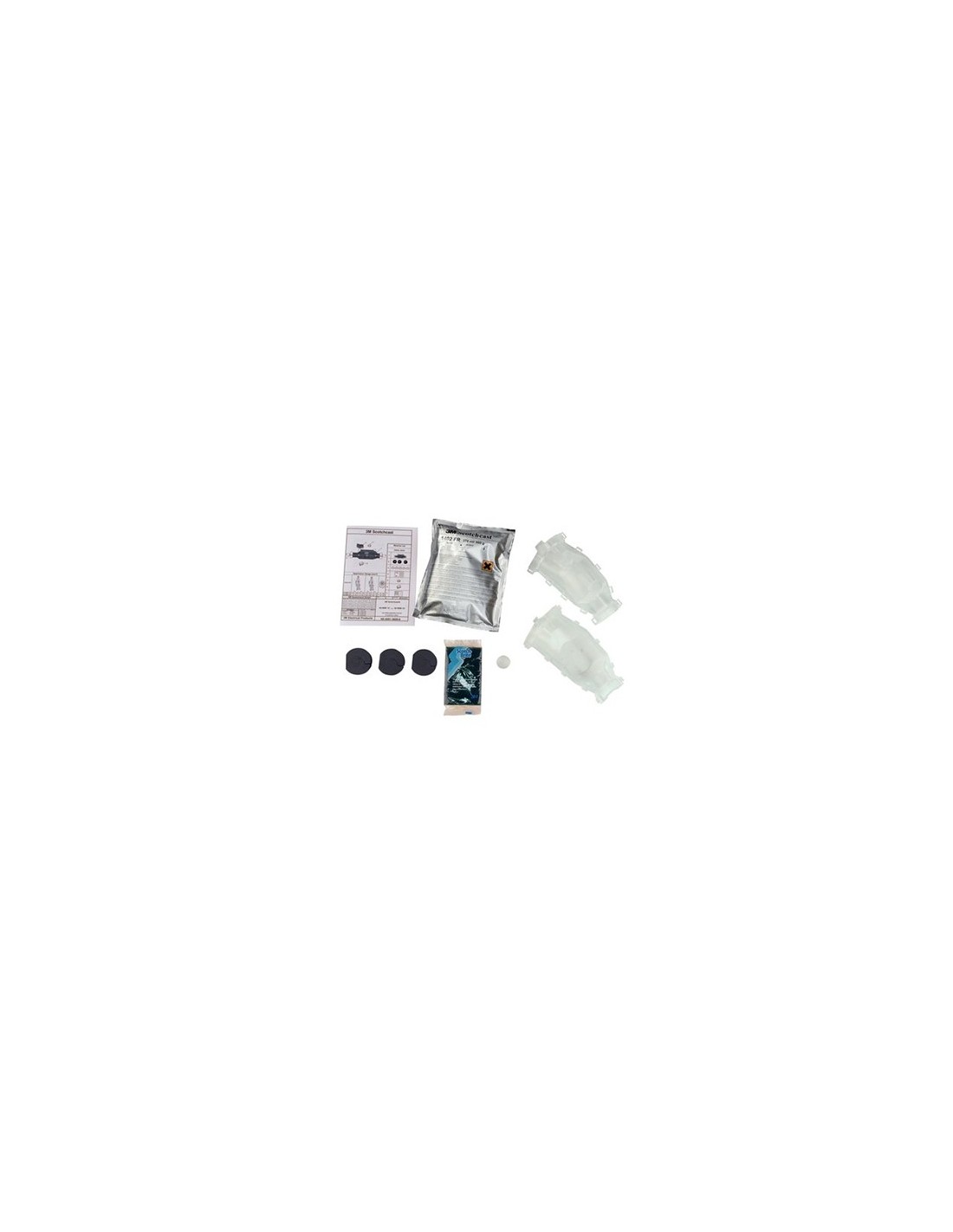

Kit content :
- Two part (upper and lower) transparent PC mould shelves with closure cap
- Scotchcast 1402FR resin bag with CMP
- Pre-cut sealing elements
- Abrasive sponge
- Detailed instruction
