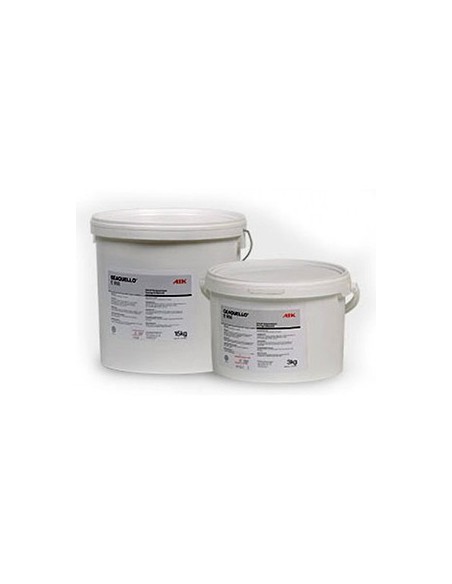

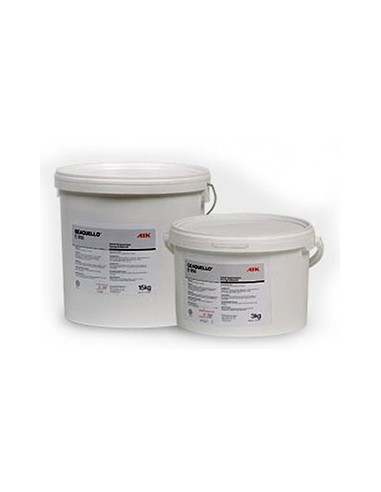

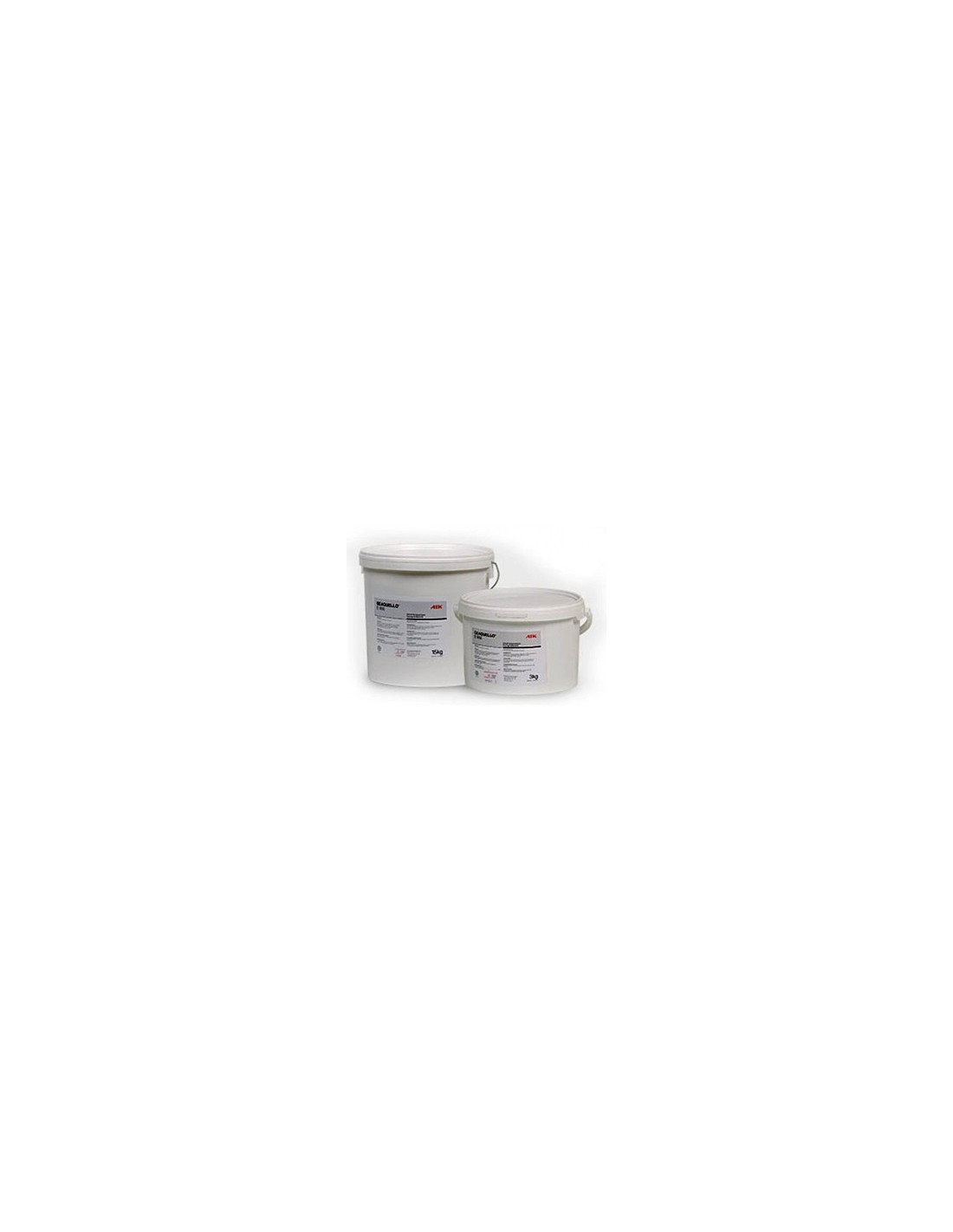

GEAQUELLO E950 IN 15 KG DRUM

GEAQUELLO E950 - DRUM 15 KG

The GEAQUELLO system comprises:
- Swell strips GEAQUELLO R 312 or R 380
- Impregnation fluid GEAQUELLO E 824
- Sealing compound GEAQUELLO E 950



It is fireproof, gastight and watertight and has been approved by most reputable classification societies and national authorities.
No adapters, moulded components or subdividers are required for installation, in spite of varying cable diameters.
Once the strips have been sprayed correctly with GEAQUELLO E824 and have swollen, the resulting end wall is flame-resistant, fire-retardant, selfextinguishing and free of halogen.
Its liquid component (GEAQUELLO E 950) is drinking water which is simply added on site.



Characteristics :
- Component : Powder
- Mixing ratio ( Water/Powder ) : 1:2
- Hardness : >80 Shore A
- Thermal conductivity : 0,18 W/m.K
- pH : 7 - 8



Application :
A-60 Bulkhead and deck penetration according to SOLAS 1974

GEAQUELLO E 950 is a sealing system for making removable, fire-retardant, gas- and watertight cable ducts for ships applications.

GEAQUELLO has successfully passed various tests on water tightness up to pressure of 6 bar and all necessary fire tests for A 60.
It is approved by most reputable classification societies and national authorities.
The test surpass the safety requirements of the SOLAS 1974 regulations for divisional surfaces of the type A-60.
